AC Adapter Model: PA-1440-1C
Series 2912
For use with Compaq Series 2910 family of computer products only.
Replace with Compaq Spare:: 247844-001
Compaq Part No.: 247845-001, 247843-101, 247843-001
INPUT: 100-240V~ 0.6-1.0A, 50-60Hz
OUTPUT: 18.85V 3.2A, 44W Max.
4-pin Connector
Dimension: 125 x 52 x 30 mm
*Please take note, 3 wire AC power cord not included.
INPUT: 100-240V~ 1.5A, 50-60Hz
OUTPUT: 16V 3.95A 64W
Connecter size: Int. Diameter: 2.50mm
Ext. Diameter: 5.50mm
Length : 10.00mm
Dimensions: 149 x 66 x 35 mm
*Please take note, 3 wire (IEC C13) AC power cord not included.
**For use with Dell W1700 17" LCD TV.
INPUT: 100-240V~ 1.6A, 50-60Hz
OUTPUT: 19.5V 3.34A 65W
Octagonal Connecter size: Int. Diameter: 4.95mm
Ext. Diameter: 7.50mm
Signal pin in the middle
Dimension: 108 x 45 x 30 mm
*Please take note, 3 wire AC power cord not included.

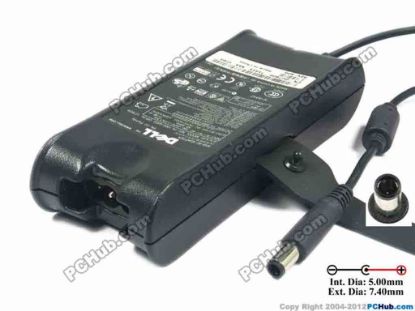

INPUT: 100-240V~ 1.6A, 50-60Hz
OUTPUT: 19.5V 3.34A 65W
Octagonal Connecter size: Int. Diameter: 5.0mm
Ext. Diameter: 7.50mm
Signal pin in the middle
Dimension: 108 x 45 x 30 mm
*Please take note, 3 wire AC power cord not included.
